Beckhoff

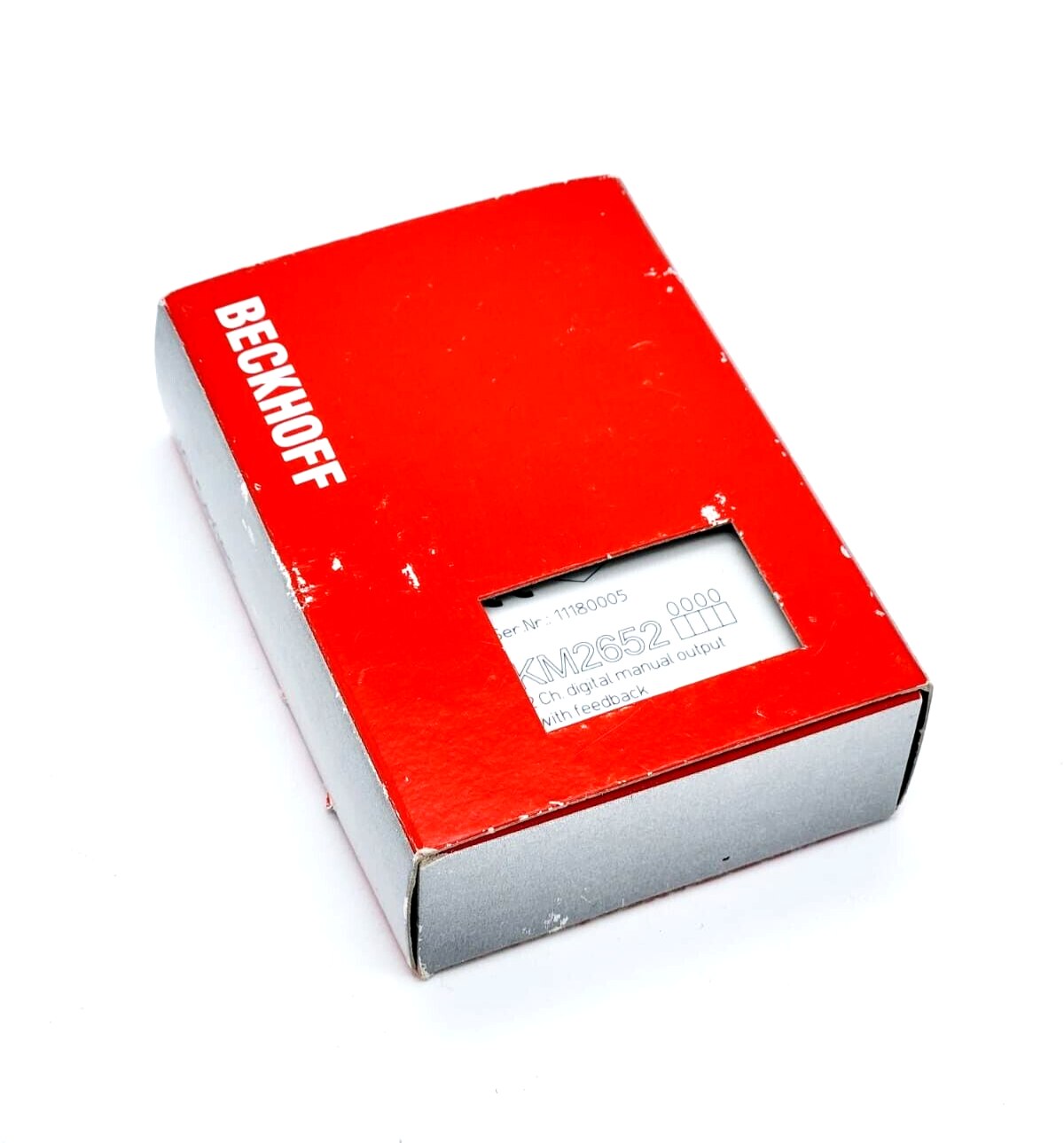

Beckhoff KM2652 Busklemmenmodul, 2-Kanal-Digital-Ausgang, 230 V AC, 6 A
Beckhoff KM2652 Busklemmenmodul, 2-Kanal-Digital-Ausgang, 230 V AC, 6 A
Couldn't load pickup availability
- Anzahl Ausgänge 2 x Wechsler
- Nennspannung 230 V AC (max. Schaltspannung 250 V AC)
- Schaltleistung max. 1,5 kVA
- Schaltspannung max. 250 V AC
- Lastart ohmsch, induktiv, Lampenlast
- Ausgangsstrom max. 6 A je Kanal
- Schaltstrom 6 A AC/4 A DC bei 30 V DC
- Minimal zulässige Last 100 mA bei 12 V
- Lampenlast, EVG max. 10 A Einschaltstrom
- Stromaufnahme Powerkontakte –
- Stromaufnahme K-Bus 130 mA typ.
- Kontaktmaterial AgSnO2
- Breite im Prozessabbild Input: 4 (Status Hand, Auto, Relais ON/OFF), Output: 2
- Schaltspiele 106
- Schaltspiele mech. (min.) 1 x 106
- Schaltspiele elektr. (min.) 1 x 105 (3 A/250 V AC)
- Konfiguration keine Adress- oder Konfigurationseinstellung
- Besondere Eigenschaften Hand-/Automatikbedienung, Schalterzustand auslesbar
- Gewicht ca. 110 g
- Betriebs-/Lagertemperatur 0…+55 °C/-25…+85 °C
- Relative Feuchte 95 % ohne Betauung
- Schwingungs-/Schockfestigkeit gemäß EN 60068-2-6/EN 60068-2-27
- EMV-Festigkeit/-Aussendung gemäß EN 61000-6-2/EN 61000-6-4
- Schutzart/Einbaulage IP20/beliebig
- Zulassungen/Kennzeichnungen CE
