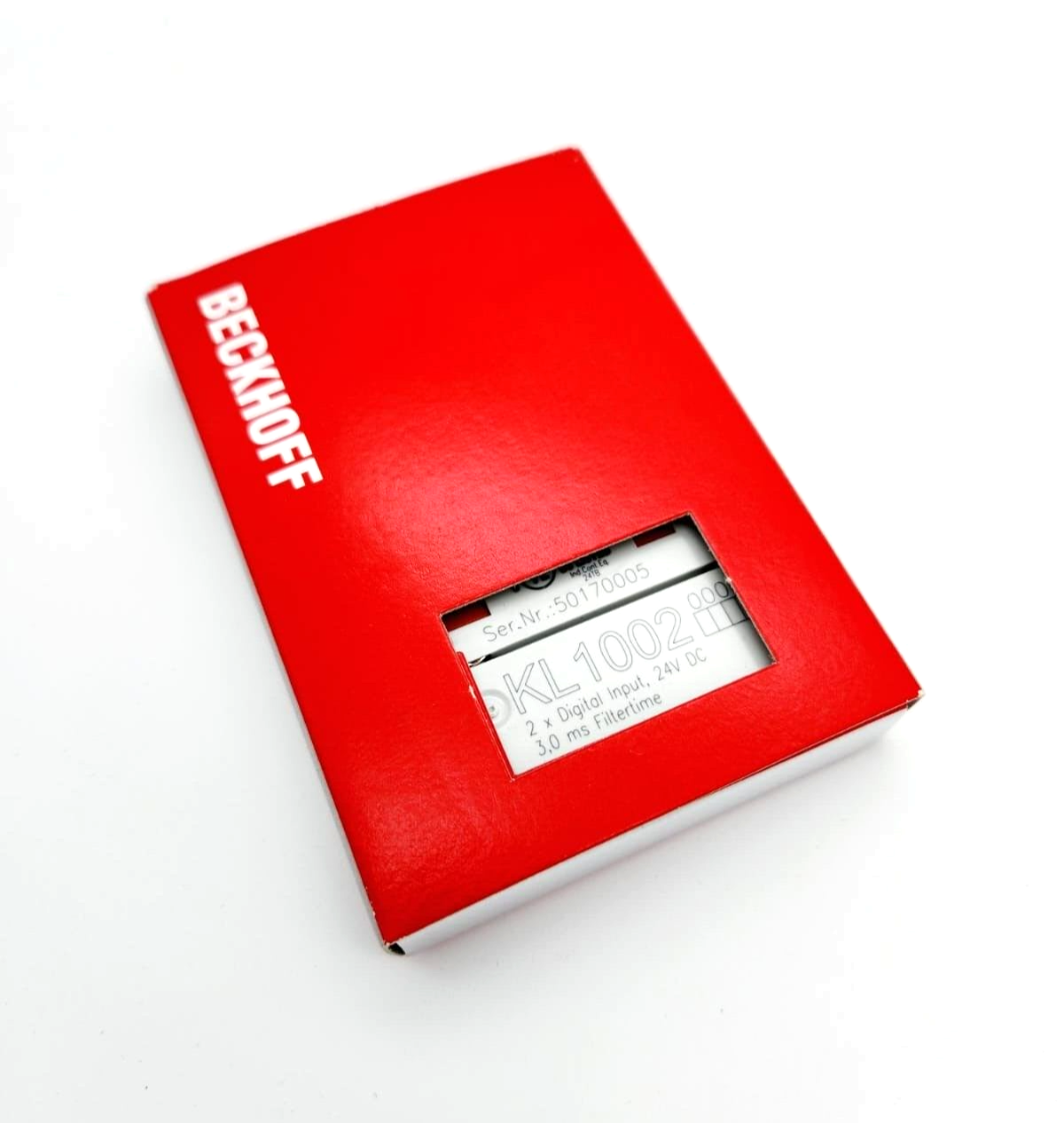

Beckhoff KL1002 Bus Terminal, 2-channel digital input, 24 V DC, 3 ms

Beckhoff KL1002 Bus Terminal, 2-channel digital input, 24 V DC, 3 ms

€39,12 EUR
€39,12 EUR
Sale Sold out
Tax included. Shipping calculated at checkout.
Beckhoff KL1002 Bus Terminal, 2-channel digital input, 24 V DC, 3 ms
  • Connection technology 4-wire
  • specification EN 61131-2, Type 1
  • Number of inputs 2
  • nominal voltage 24V DC (-15%/+20%)
  • Signal voltage “0” -3…+5V
  • Signal voltage “1” 15…30V
  • Input filter 3.0ms typ.
  • Input current 5mA typ.
  • Current consumption K-Bus 3mA typ.
  • Potential separation 500 V (K-bus/field voltage)
  • Width in the process image 2 inputs
  • configuration no address or configuration setting
  • Weight approx. 50 g
  • Operating/storage temperature -25…+60 °C/-40…+85 °C
  • Relative humidity 95% without condensation
  • Vibration/shock resistance according to EN 60068-2-6/EN 60068-2-27
  • EMC strength/emission according to EN 61000-6-2/EN 61000-6-4
  • Protection class/installation position IP20/any
  • Pluggable wiring for all KSxxxx terminals
  • Approvals/Markings CE, UL, ATEX, IECEx, DNV GL
  • Ex marking ATEX:
  • II 3 G Ex nA IIC T4 Gc
  • IECEx:
  • Ex ec IIC T4 Gc
